Robotic Palletizing / TRFCompact
Compact robotic palletizer. Industrial performance for a small footprint.
A compact robotic palletizer delivering industrial performance without compromising valuable floor space.
Discover TRFCompact, a plug-and-play industrial robotic palletizing cell combining high performance, flexible operation, and a small footprint for modern production lines.
Industrial Performance
High-performance industrial robotic palletizing designed for reliable, continuous production.
Plug-and-Play Simplicity
Standardized, easy-to-integrate architecture designed to simplify deployment and reduce project complexity.
Small Footprint
Compact design that maximizes production space and fits seamlessly into existing facilities.
Flexible Palletizing
Adaptable to different box sizes, pallet patterns, and production requirements.
Start industrial robotic palletizing from US$180,000
Reference list price: US$180,000 for the TRFCompact Industrial Robotic Palletizer, EX Works Lenexa, Kansas. Installation, conveyor integration, commissioning, and optional features are quoted based on your specific production requirements.
TRFCompact is a compact, plug-and-play robotic palletizing system that combines industrial performance, flexible automation, and a small footprint. Designed for existing production lines and space-constrained facilities, this standardized industrial palletizing cell helps manufacturers reduce manual palletizing, improve operational efficiency, and automate repetitive end-of-line processes.
With flexible pallet patterns, multiple SKU configurations, and reliable industrial robot technology, TRFCompact delivers high-performance robotic palletizing without the footprint or complexity of traditional custom systems.
Use the reference price as a starting point to evaluate your palletizing automation investment, potential labor savings, and return on investment (ROI).
Payback calculator
Calculate your TRFCompact payback
Discover the potential cost savings of a TRFCompact over a 20-year system life. Enter your line data to see the preview; your work email unlocks the full breakdown.
Results are estimates based on the data you enter and typical reference values. Actual payback depends on your application, configuration and project scope, confirmed by a TRF Sales Engineer.
How fast can a compact palletizer pay back?
If operators are still palletizing by hand, automation can reduce repetitive labor, improve ergonomics and create a more predictable end-of-line process.
Use the compact palletizer ROI calculator to estimate your potential payback based on your location, number of shifts and current palletizing labor.
20-year labor savings
Break-even point
Your hourly labor rate
Robot hourly "labor" rate
This is an initial planning estimate, not a quote and not a guarantee of savings.
It does not include financing, taxes, layout changes or the specific integration of your line. Your complete calculation, with every item for your plant, is done with a TRF Sales Engineer.
Discuss Your Project20-year cost comparison
- Manual labor breakdown
- Annual labor cost:
- x 20 years =
- Robot system breakdown
- System purchase:
- Maintenance (20 yr):
- Electricity (20 yr):
- Total:
- Your inputs
- Location:
- Hourly labor rate:
- People per shift:
- Hours per shift:
- Shifts per day:
- Days per week:
- Location data
- Average manufacturing wage:
- Fully loaded rate:
- Electric rate:
- System hours per year:
20-year projection
| Year | Manual labor | System purchase | Mainte- nance | Electri- city | Robot total cost | Net savings | Cumulative savings |
|---|
Where the numbers come from
- Manual labor
- System purchase
- Maintenance
- Electricity
- Total system cost
- Break-even
- Robotic system, 20 years
- 20-year labor savings
This calculator compares your current manual labor costs against the total cost of owning and operating a robotic system over its 20-year lifespan, considering the system purchase price, maintenance (5% of the system price per year) and electricity. The break-even point divides the first-year system cost (purchase, one year of maintenance and one year of electricity) by the annual manual labor cost. Labor data from the U.S. Bureau of Labor Statistics; electric data from the U.S. Energy Information Administration (2024 to 2025). Figures are undiscounted and exclude inflation, financing and taxes.
TRFCompact specifications and capacity
| Item | TRFCompact |
|---|---|
| Robot | ABB IRB 4600 |
| Typical speed | Up to 15 cycles per minute |
| Case weight | Up to 65 lb, subject to technical validation |
| Pallet height | Up to 95 in |
| End-of-arm tool | Vacuum or clamp subject to end-of-arm tool and reach validation |
| Typical line | Medium speed, high mix, frequent SKU and pallet pattern changes |
| Footprint | 13L x 13W ft |
| Price | Reference list price US$ 180,000 (TRFCompact Dual, EX Works Lenexa, KS); scope confirmed in each quote |
Typical ranges. TRF engineering confirms final capacity for each application (product, end-of-arm tool, pallet pattern, reach and process).

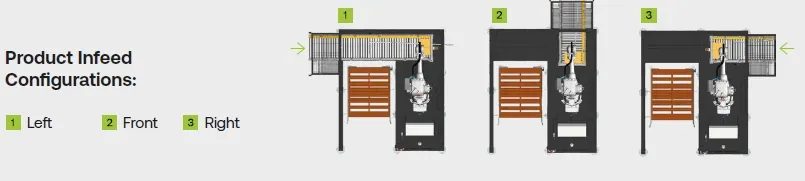

TRFCompact layout options by infeed position
Why do manufacturers choose a compact palletizer?
Manufacturers choose TRFCompact when collaborative palletizing systems can't meet their production demands, but large custom robotic cells exceed their needs. TRFCompact bridges this gap, delivering industrial robotic palletizing performance in a compact, flexible, plug-and-play solution.
Here are the five key reasons why manufacturers choose TRFCompact.
Small Footprint
TRFCompact is a compact robotic palletizer designed for seamless integration into existing production lines, maximizing floor space while delivering reliable industrial performance.
Industrial Robustness
TRFCompact delivers robust industrial robotic palletizing performance, engineered for continuous operation, consistent repeatability, and maximum production uptime.
Flexible Palletizing
TRFCompact offers flexible robotic palletizing for multiple SKUs, box sizes, and pallet patterns, enabling quick recipe-based changeovers without complex reprogramming.
Same-Day Installation
TRFCompact features a standardized, plug-and-play robotic palletizing design that enables same-day installation, minimizing production downtime and simplifying integration into existing lines.
What is a compact robotic palletizer, and how is it different from a cobot palletizer?
A compact robotic palletizer is an automated industrial palletizing cell designed to stack boxes, bags, trays, and other products onto pallets with high efficiency, consistency, and a small footprint. It combines an industrial robot, infeed conveyor, end-of-arm tooling (EOAT), pallet positions, and an intuitive control system supporting multiple SKUs and pallet patterns.
Unlike a collaborative robot palletizer (cobot), typically designed for lighter loads and lower production speeds, a compact industrial palletizer delivers greater payload capacity, faster cycle times, and the robustness required for continuous industrial operation.
TRFCompact bridges the gap between collaborative palletizers and large custom robotic palletizing systems, combining industrial performance, flexible palletizing, and a standardized, plug-and-play design for seamless integration into existing production lines.
Cooperative Palletizing with ABB SafeMove Technology
What makes TRFCompact different is its cooperative robotic palletizing architecture. By integrating safety laser scanners with ABB SafeMove technology, TRFCompact enables operators to safely access designated pallet-changing zones while the industrial robot continues operating in a separate, monitored area.
This allows pallet replacement without stopping the entire robotic palletizing process, helping minimize downtime, improve productivity, and maximize equipment utilization.
With its small footprint, industrial performance, cooperative operation, and plug-and-play simplicity, TRFCompact delivers an efficient alternative to both conventional cobot palletizers and larger custom palletizing cells.
Which applications fit a compact palletizer?
A cell like TRFCompact fits manufacturers that need industrial performance in a constrained area, at rates where a cobot falls short and a large custom cell is hard to justify. Five customer profiles fit TRFCompact:
- Small and mid-sized food, CPG and chemical manufacturers that need industrial performance in a constrained area. See food processing, chemical packaging automation and household and cleaning products.
- Larger manufacturers with decentralized or secondary production lines, where a full central palletizing system would be excessive. A compact cell automates that line where it is, without rebuilding the plant layout.
- Co-packers and contract manufacturers seeking lower operating costs through flexible robotic palletizing, quick SKU changeovers, and easy relocation between production lines. See CPG and co-packers.
- E-commerce and distribution operations seeking flexible robotic palletizing with optional depalletizing capabilities and seamless integration into automated warehouse systems, including AS/RS, to improve material flow and operational efficiency. See e-commerce and distribution.
- Brownfield plants where available floor space is a major limitation: a traditional large cell may not fit, and a collaborative cell may fit but fall short on speed or duty cycle.
Is your production line ready for TRFCompact?
TRFCompact is a compact robotic palletizer and standardized industrial palletizing cell designed for manufacturers seeking reliable, flexible palletizing automation. Combining industrial robot performance, a small footprint, and plug-and-play simplicity, it delivers efficient robotic palletizing without the complexity of large custom systems.
Is TRFCompact the right solution for your production line?
- Is your palletizing process manual or semi-automated, handling up to approximately 15 cases per minute?
- Do your cases weigh up to 65 lb, requiring reliable industrial robotic handling?
- Do you need greater speed, robustness, and repeatability than a typical cobot palletizer can provide?
- Is floor space limited, making a compact robotic palletizing system essential for your existing production line?
- Do you handle multiple SKUs, box sizes, or pallet patterns that require quick and easy changeovers?
- Are you looking for a standardized palletizing solution designed for same-day installation with minimal production downtime?
- Would you benefit from changing pallets in designated safe zones while the industrial robot continues operating in a separate, monitored area?
Engineered to Fit Your Production
Before providing a quotation, TRF Industrial Automation evaluates product dimensions and weight, end-of-arm tooling (EOAT), pallet patterns, robot reach, production speed, and pallet handling requirements.
For existing facilities, our engineering team reviews conveyor integration, available floor space, and material flow to ensure the TRFCompact robotic palletizing system fits your operation with minimal disruption.
Industrial Performance. Small Footprint. Flexible Automation.
How do you choose between TRFCobot, TRFCompact and TRFSpeed?
Choose by line speed, case weight and floor space. The three TRF palletizing platforms form one family, and the right model is defined by your line setup and rate.
| Platform | Typical speed | Case weight | Typical fit |
|---|---|---|---|
| TRFCobot | Up to 10 cases per minute | Up to 26 lb | Lower-speed, high-mix lines with limited floor space |
| TRFCompact | Up to 15 cases per minute | Up to about 65 lb | Medium-speed, limited floor space |
| TRFSpeed | 15 cases per minute or more | Up to about 80 lb | High volume, continuous or multi-line palletizing; TRFSubzero for areas below 32°F |
If your rate, case weight or growth plans go beyond the range of one platform, the next platform in the same family covers higher speeds and payloads. Compare all platforms on the robotic palletizing page. Each platform can also be the last station of a complete TRF end of line, with case packing and conveying supplied by the same partner.
Catalog
Get the TRFCompact catalog
Tell us where to send it and a TRF Sales Engineer will email you the TRFCompact catalog with specifications and configurations.
Thank you.
A TRF Sales Engineer will email you the TRFCompact catalog.
Questions
Frequently asked questions
How Much Does a Compact Palletizer Cost?
A robotic palletizer from TRF, the TRFCompact Dual, has a reference list price of US$ 180,000, EX Works Lenexa, Kansas, installation not included. Installation, line integration, the end-of-arm tool and the conveyor interface are quoted with your application, because line speed, case weight, pallet pattern and layout change the scope. The robotic palletizer cost guide explains each cost driver.
How Much Floor Space Does a Compact Robotic Palletizing Cell Require?
TRFCompact features a space-efficient design with a maximum footprint of approximately 13 x 13 ft, making it ideal for brownfield facilities and production lines with limited floor space. Its compact industrial palletizing cell is designed for manual pallet jack access, eliminating the need for dedicated forklift maneuvering space around the cell and optimizing valuable factory floor space. TRF engineers validate the layout, conveyor integration, pallet positions, and material flow to ensure seamless installation and efficient robotic palletizing automation.
Can a Compact Robotic Palletizer Be Installed in a Brownfield Plant With Limited Space?
Yes. TRFCompact is a small-footprint industrial robotic palletizing cell specifically designed for seamless integration into existing production lines and space-constrained facilities. Its standardized, plug-and-play architecture simplifies installation, enabling same-day deployment with minimal production disruption when the site is properly prepared. TRF engineers validate the layout, robot reach, conveyor integration, and pallet flow to ensure reliable palletizing automation without requiring extensive facility modifications.
What Is an Industrial Robot?
An industrial robot is a programmable, multi-axis arm built for high speed, heavy payloads and continuous duty in manufacturing, used for tasks such as palletizing, welding and machine tending. In palletizing, an industrial robot runs a higher duty cycle than a collaborative robot. TRFCompact places an industrial robot in a compact, standardized cell, and TRFSpeed uses one for high-throughput and multi-line systems.
What Payload Capacity Do I Need for Robotic Palletizing?
Choosing the right robotic palletizer depends on your product weight, production speed, pallet pattern, and handling requirements. Robot payload capacity must account for the weight of the cases, the end-of-arm tooling (EOAT), and multiple-case picking when applicable. TRF Industrial Automation offers different robotic palletizing solutions based on your application: TRFCobot for collaborative palletizing of cases up to approximately 26 lb; TRFCompact for compact industrial robotic palletizing of cases up to approximately 65 lb, combining industrial performance with a small footprint; and TRFSpeed for high-performance robotic palletizing of heavier loads, handling cases up to approximately 80 lb.
How Does TRFCompact Handle Frequent SKU and Pallet Pattern Changeovers?
TRFCompact simplifies SKU changeovers with an integrated, user-friendly palletizing application that allows operators to create and manage their own pallet patterns and production recipes, without complex robot programming. By simply entering product dimensions, pallet specifications, and other key parameters, operators can generate new pallet configurations, save recipes, and quickly switch between different SKUs. This flexible robotic palletizing system reduces changeover time, minimizes engineering dependency, and improves production efficiency, making TRFCompact ideal for co-packers, contract manufacturers, and high-mix production lines.
How Long Does a Compact Palletizer Take to Pay Back?
A robotic palletizer pays back according to the labor hours it replaces, the shifts per day, local labor cost and the installed cost of the system. A TRF Sales Engineer completes the estimate with your project costs.
Who Offers Compact Robotic Palletizers With Local Support in the USA?
TRF Industrial Automation delivers TRFCompact, a high-performance compact robotic palletizer engineered for the U.S. market, combining industrial reliability, a small footprint, and plug-and-play installation. With a U.S.-based team in Lenexa, Kansas, TRF provides engineering, installation, commissioning, technical support, and spare parts services to manufacturers nationwide. Beyond robotic palletizing, TRF offers integrated end-of-line automation solutions, including case packing and conveyor systems, providing customers with a single partner from system design to long-term maintenance. Through our Parts and Service team and TRFCare preventive maintenance program, customers benefit from ongoing technical support, spare parts availability, and proactive equipment care to help minimize downtime and keep production running.
Compact robotic palletizing designed to fit your production line
When collaborative palletizers can't meet your production demands and traditional robotic cells require too much space, TRFCompact delivers the ideal balance of industrial performance, flexibility, and a small footprint.
With a standardized, plug-and-play design, TRFCompact simplifies integration into existing production lines while minimizing installation time and operational disruption.
Share your product dimensions, case weights, production rates, pallet patterns, and available floor space. Our Sales Engineering team will evaluate your application, optimize the cell layout, and recommend a compact robotic palletizing solution tailored to your operation.
